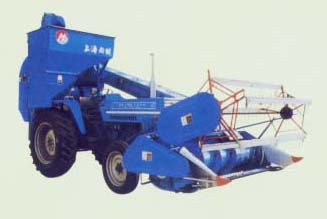

Model: 4L-2.5, carry on type, combined harvester
is capable to be equipted with four wheel tractor 500,504, 650, 654
cleaning and threshing system is by fan and double roller screen to perform the initial cleaning and threshing.
cutting width 2200mm fuel consumption 0.75-1.5kg/ sq.km
feeding speed 2.5kg/s height of plant after cutting 80-400mm
productivity 2000-5300 Dim. after assembled L.W.H. (mm) 6750*2700*3500
broken % wheat <=2
rice <=2		 weight kgs 1125kgs
loss % wheat <=2
rice <=3.5		 min. ground clearance 300mm
mixure % wheat <=5
rice <=5		 working speed kw/h speed (1) 2.15
speed(2) 3.54
reliability % 92
