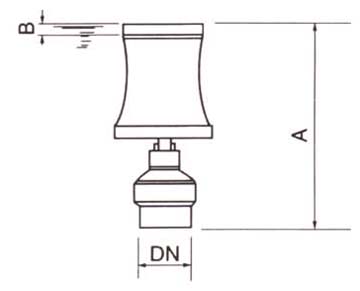

Model	Size DN (mm)	Capacity cbm/h	Water Pressure kpa	Spring height (m)	Spread diameter(m)	Size A (mm)	Size B (mm)
JTP-1120	Ø20 inner thread	2.5-4.5	55-90	3.2-4.2	0.2-0.4	145	10
JTP-1125	Ø25 inner thread	5.0-6.0	100-143	1.6-2.4	0.65-0.90	160	10
JTP-1140	Ø40 inner thread	8.0-10	76-115	1.6-2.35	0.80-1.2	220	20
JTP-1150	Ø50 inner thread	17.0-19.0	113-138	2.2-4.2	0.95-1.2	235	30
JTP-1180	Ø80 inner thread	29.7-42	150-400	5-10	1.4-2.2	300	30
