Model | DF-81BL |
StructureWeight kg | 264 |
Working weight (with rotavator) kg | 509 |
Turning speed of rototilling shaft rpm | 172(235,210,288 by exchanging sprockets |
Overall dim. (L*W*H) (mm) | 2065*870*1180 |
Number of blades | 18 |
Rototilling Width (mm) |
660 |
Type of tractor | single axle, dual-purpose for both traction and drive |
Travelling speed | |
Forward kw/h | 1.25, 2.54, 4.21, 5.12, 10.36, 17.19 |
Reverse kw/h | 2.76 |
Tyre size | 6.00-12 |
Wheel track mm |
800, 740, 640, 580 (normally use 800) |
Min. ground clearance (mm) | 215 |
Min. turning radius (m) | 0.9 without rotavator |
Model of engine | EM185N |
Type of engine | horizontal 4 stroke |
Cooling mode | radiator |
Sets/20'/40' | 12/26sets |
FOB Shanghai | |
Remarks |
Name | Model | FOB(usd) |
anti-skid steel wheel | 100-640 | 40.- |
anti-skid steel wheel | 100-640N | |

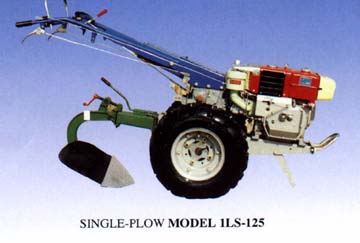

single plow | 1LS-125 | |
single plow | 1LS-120 | |

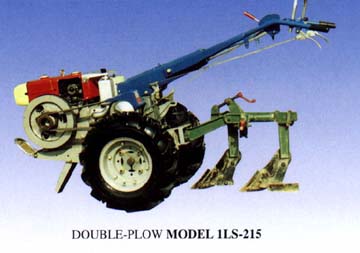

double plough | 1LS-215 | |
double plough | E8-215 | |
swather/harvester/reaper | 4GL-100 | |

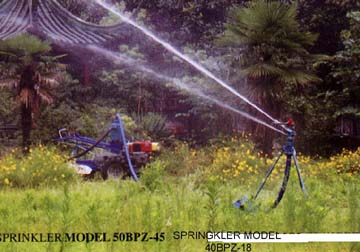

sprinkler | 40BPZ-18 | |
sprinkler | 50BPZ-45 | |

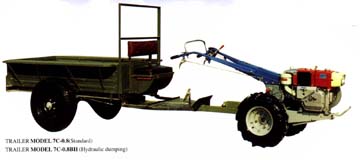

trailer (standard) | 7C-0.8 | |
trailer (hydraulic dump) | 7CH-0.8 | |
